Dr. Flat Master (0.8倍減焦)

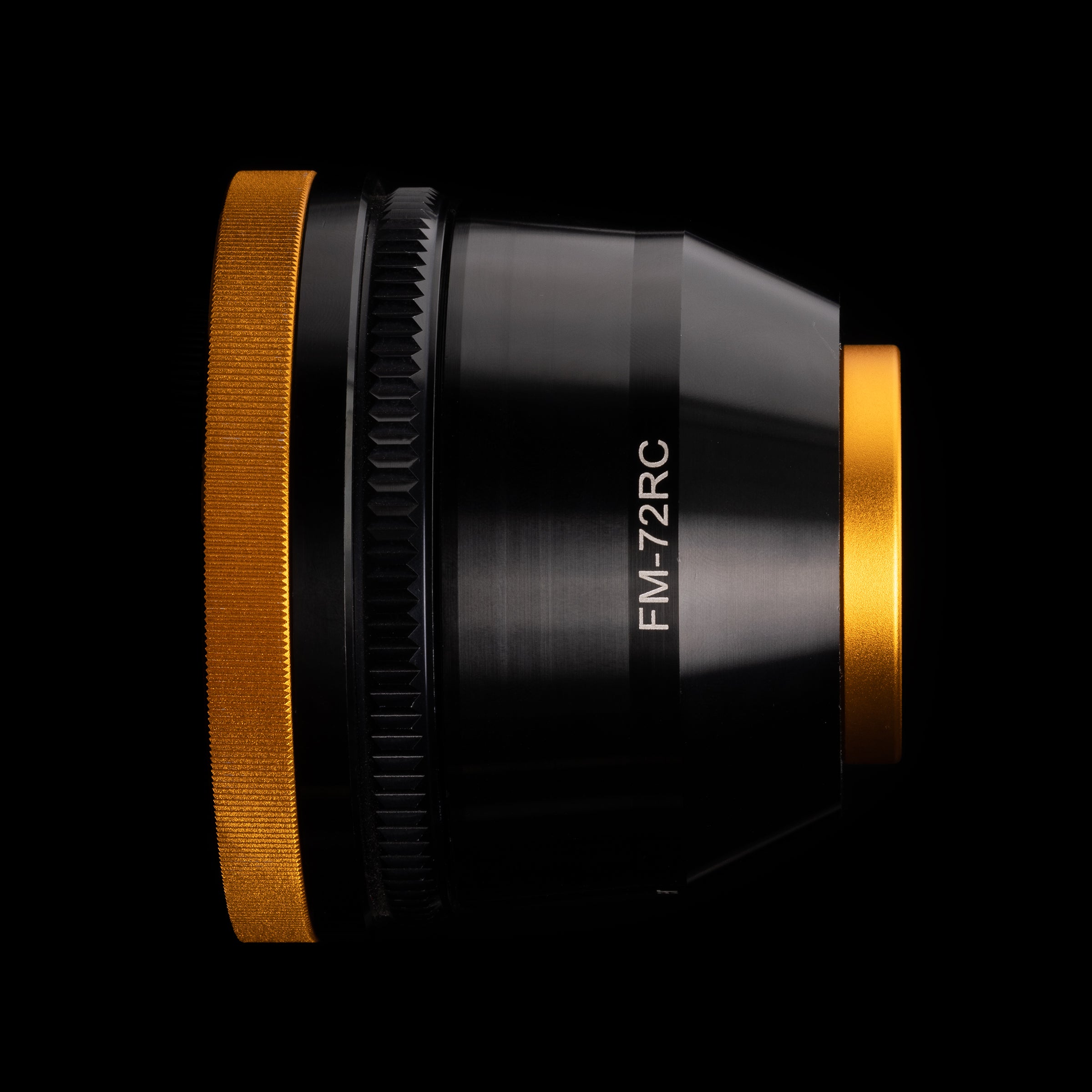

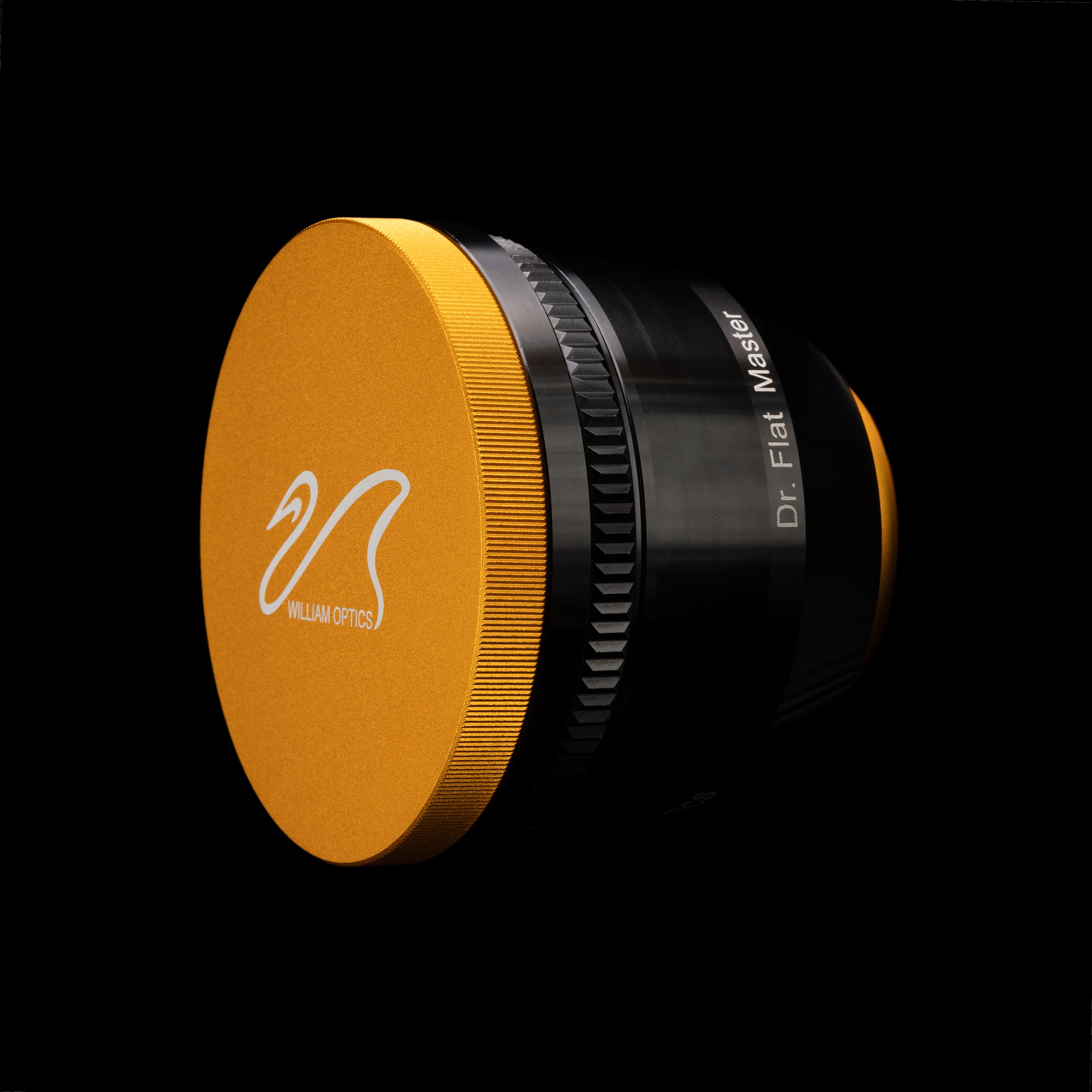

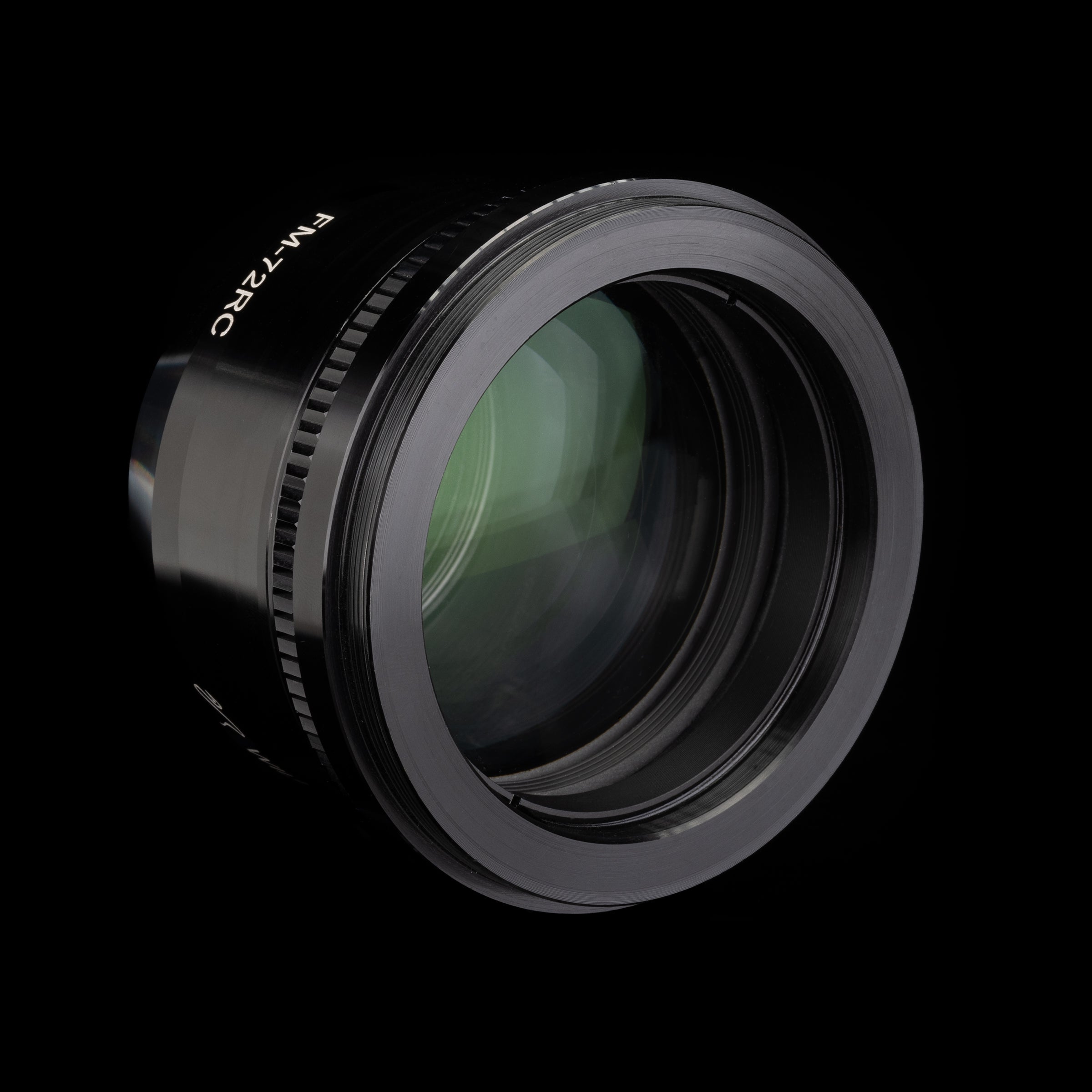

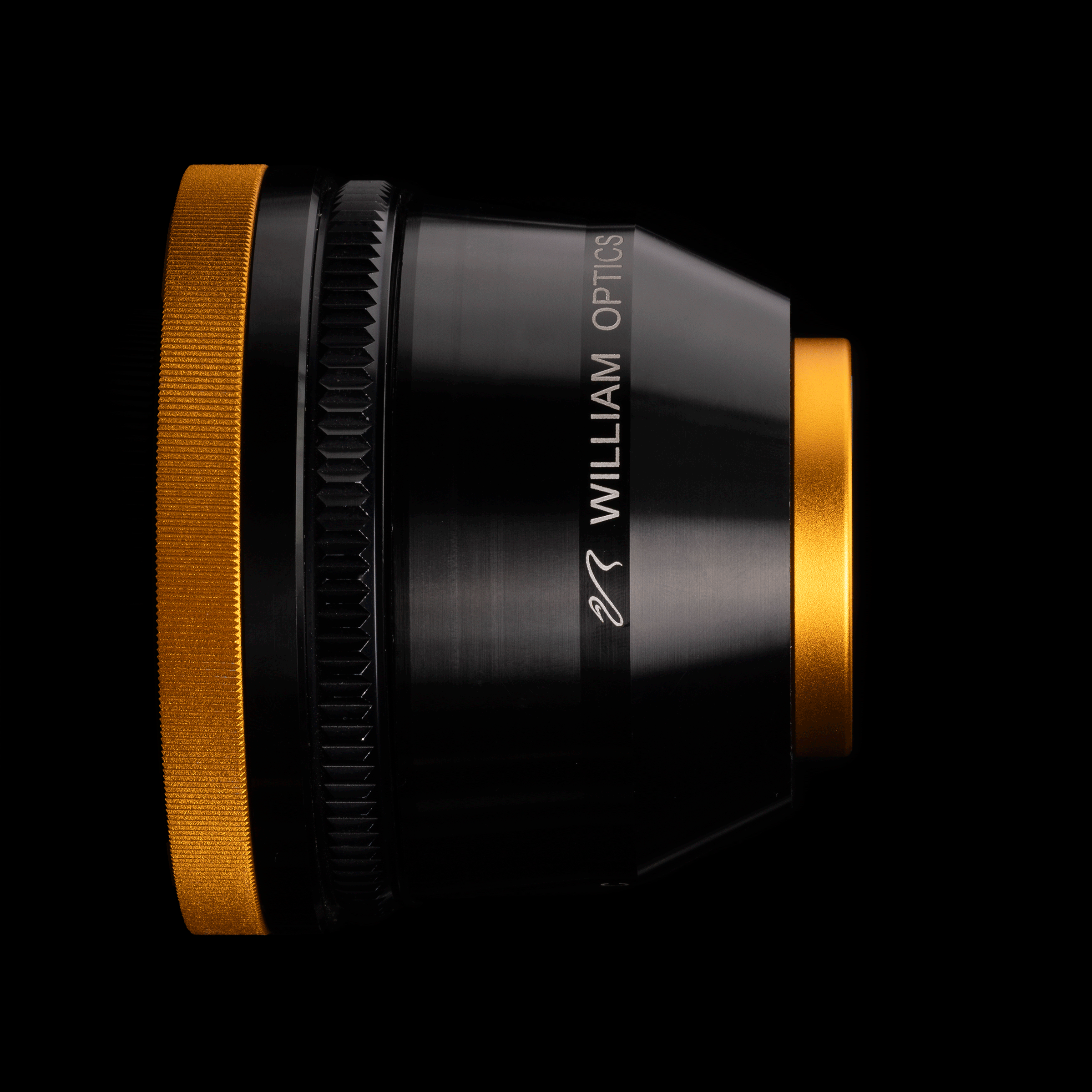

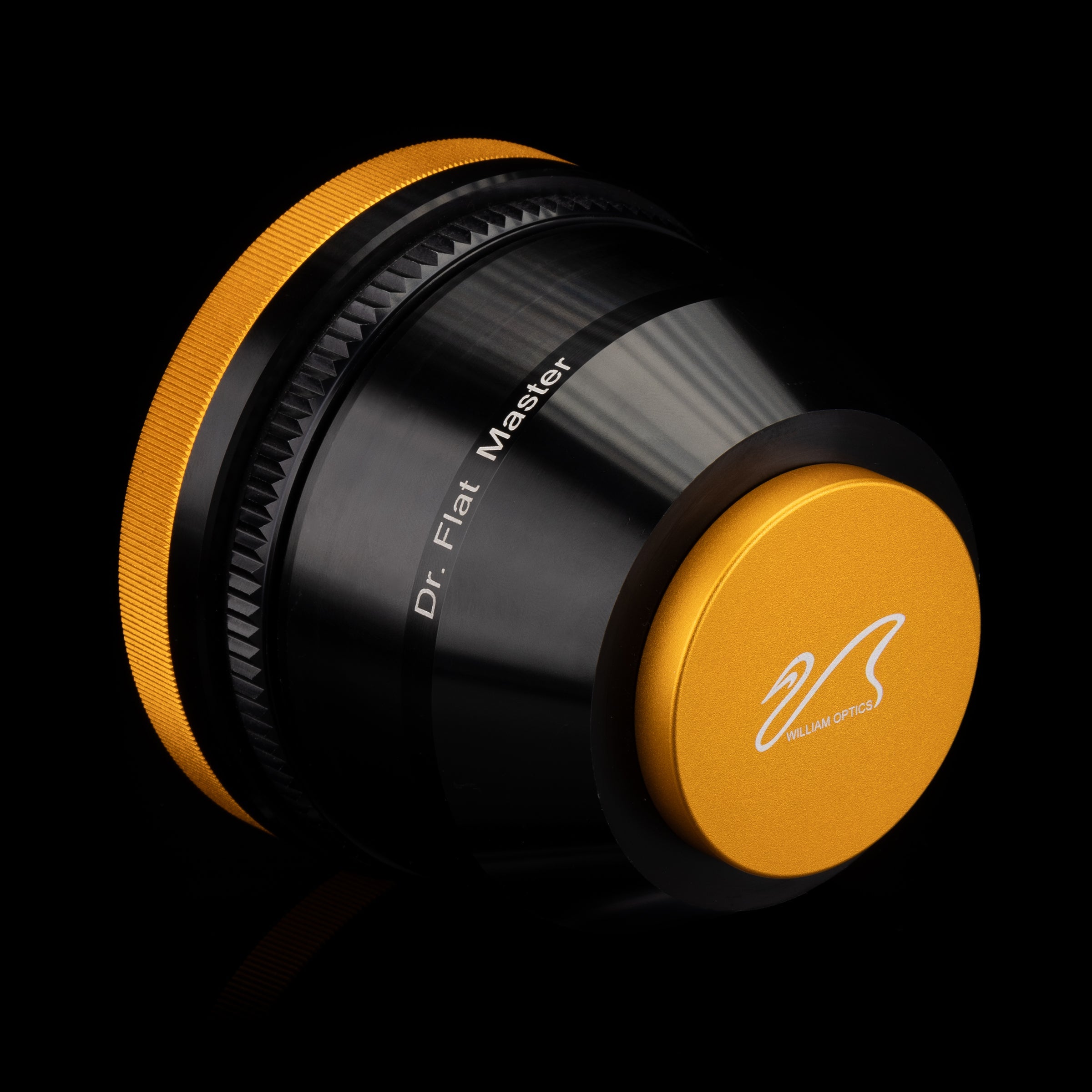

The William Optics Dr. Flat Master is an apochromatic triplet reducer/flattener designed for 12" - 16" WO and GSO Ritchey-Chrétien telescopes. It reduces the focal length by 0.8x and flattens the field, making it ideal for full-frame sensors with a 52mm image circle. Featuring an M48 x 0.75 camera connection and a backfocus distance of 86.15mm, this accessory enhances your astrophotography setup by expanding your field of view and ensuring edge-to-edge sharpnes.
- 平場倍率
- 0.8 x
- 光學系統
- 2 Groups 3 Elements
- 光學長度
- 64.5 公釐
- 望遠鏡螺紋
- M92 x 1 x 6 mm
- 相機螺紋
- M48 x 0.75 x 4 mm
- T環支援
- Canon EF, RF Nikon F, Z Sony E Pentax K MFT (M4/3) FUJI X
- 相容片幅
- Full Frame APS-C M4/3
- 重量
- 697.4 克 / 0.0 lbs
The William Optics Dr. Flat Master is an apochromatic triplet reducer/flattener designed for 12" - 16" WO and GSO Ritchey-Chrétien telescopes. It reduces the focal length by 0.8x and flattens the field, making it ideal for full-frame sensors with a 52mm image circle. Featuring an M48 x 0.75 camera connection and a backfocus distance of 86.15mm, this accessory enhances your astrophotography setup by expanding your field of view and ensuring edge-to-edge sharpnes.
Flattener compatibility table
|
FLAT 61A
1.0x |
FLAT 73A
1.0x |
FLAT GT
1.0x |
FLAT 6AIII
0.8x |
FLAT 68III
1.0x |
FLAT 7A
0.8x |
FLAT 8
0.72x |
Ultra 132
0.79x |
Ultra 156
0.79x |
Dr. Flat
0.8x |
|---|---|---|---|---|---|---|---|---|---|---|
| GS-61 | ★ | |||||||||
| Z-61 | ★ | |||||||||
| Z-73 | ★ | |||||||||
| Z-81 | ★ | |||||||||
| Z-126 | ★ | ★ | ||||||||
| GT-71 | ★ | ★ | ||||||||
| GT-81 | ★ | ★ | ||||||||
| GT-81 WIFD | Adapter | ★ | Adapter | |||||||
| GT-102 | ★ | ★ | ★ | |||||||
| GT-153 | ★ | ★ | ★ | |||||||
| FLT-91 | Adapter | Adapter | ||||||||
| FLT-120 | ★ | Adapter | ||||||||
| FLT-132 | ★ | ★ | ★ | ★ | ||||||
| FLT-156 | ★ | ★ | ★ | ★ | ||||||
| RC Series | ★ | |||||||||
| Pleiades Series | No Flattener Required | |||||||||
| Cat Series | No Flattener Required | |||||||||
