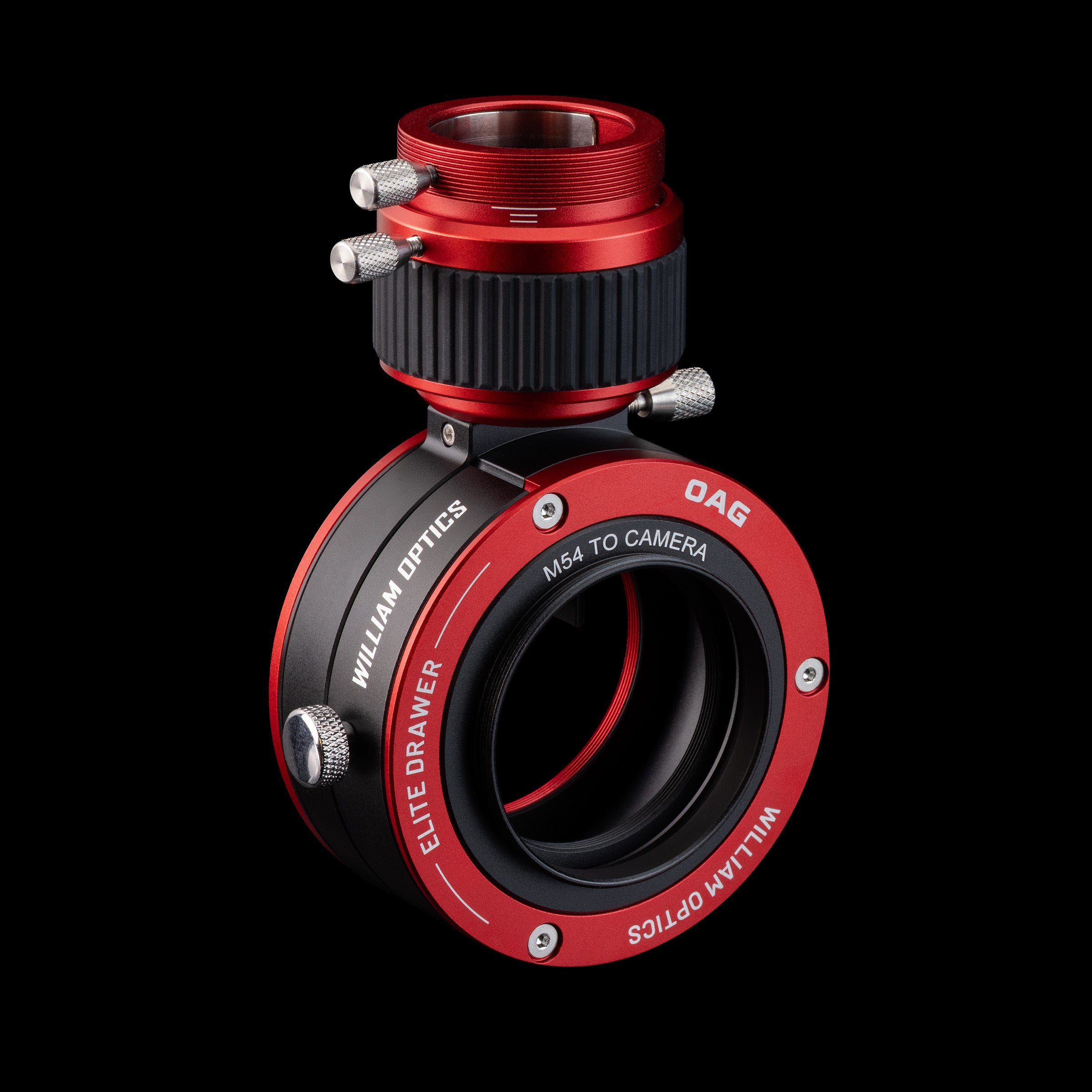

Elite Drawer OAG Kit
The Elite Drawer OAG Kit integrates Off-axis Guiding and Filter Drawer functionality into one compact, streamlined imaging system. By combining precise guide-star pickup, convenient filter access, and flexible connection options, it helps simplify the imaging train while supporting a wide range of telescope and camera configurations.

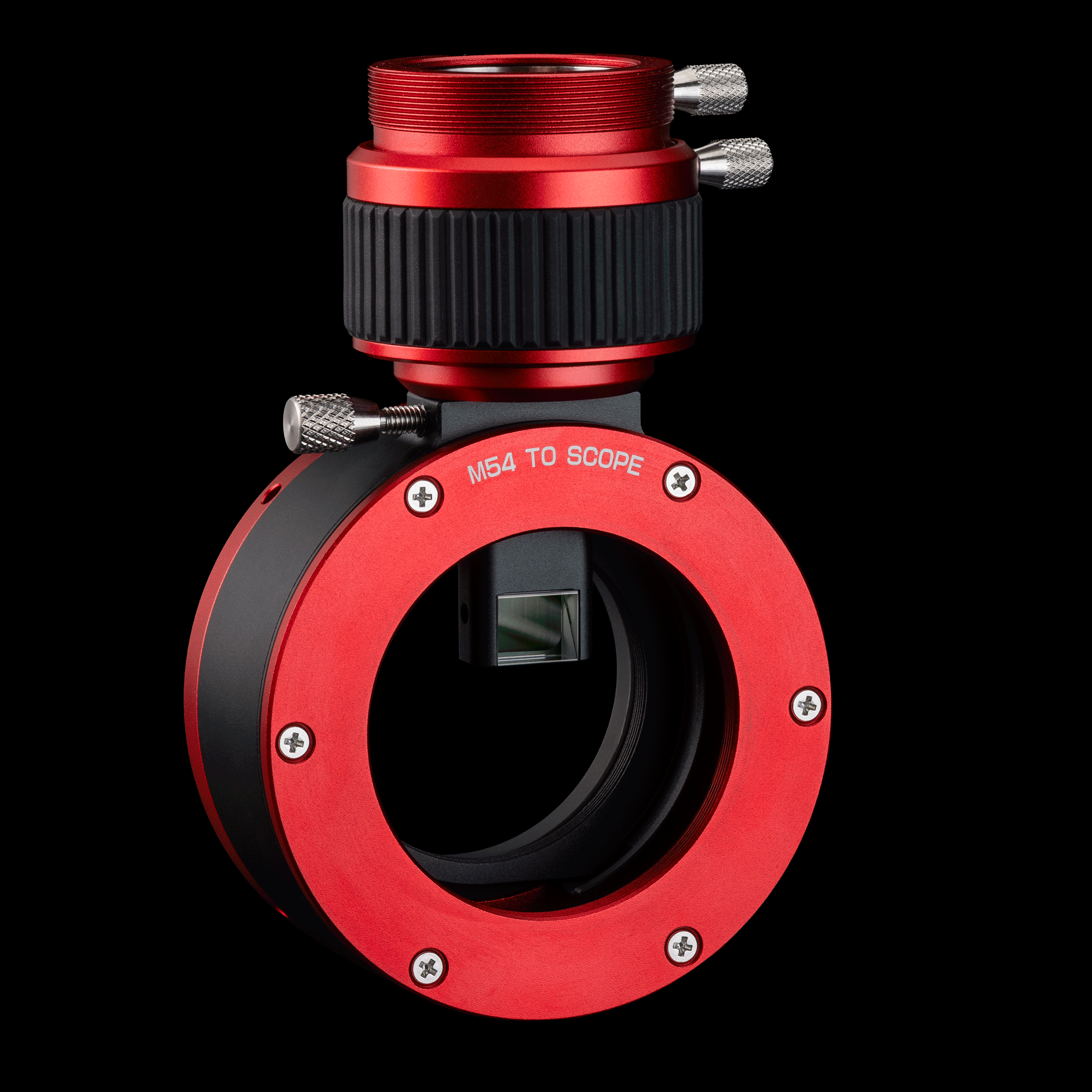

Adjustable High-Transmission Prism
A high-transmission prism is built into the off-axis guider to provide efficient guide-star pickup from the edge of the image field. Its adjustable height allows the prism position to be matched with different image circle sizes, helping maintain reliable guiding without blocking the main imaging area.
1.25" and M42 Guide Port with Smooth Helical Focus
The guide port supports both 1.25"push-in and M42 connections and features a smooth helical focusing mechanism for precise guide-camera focus adjustment. This allows fine focusing control while keeping the main imaging train stable and undisturbed.

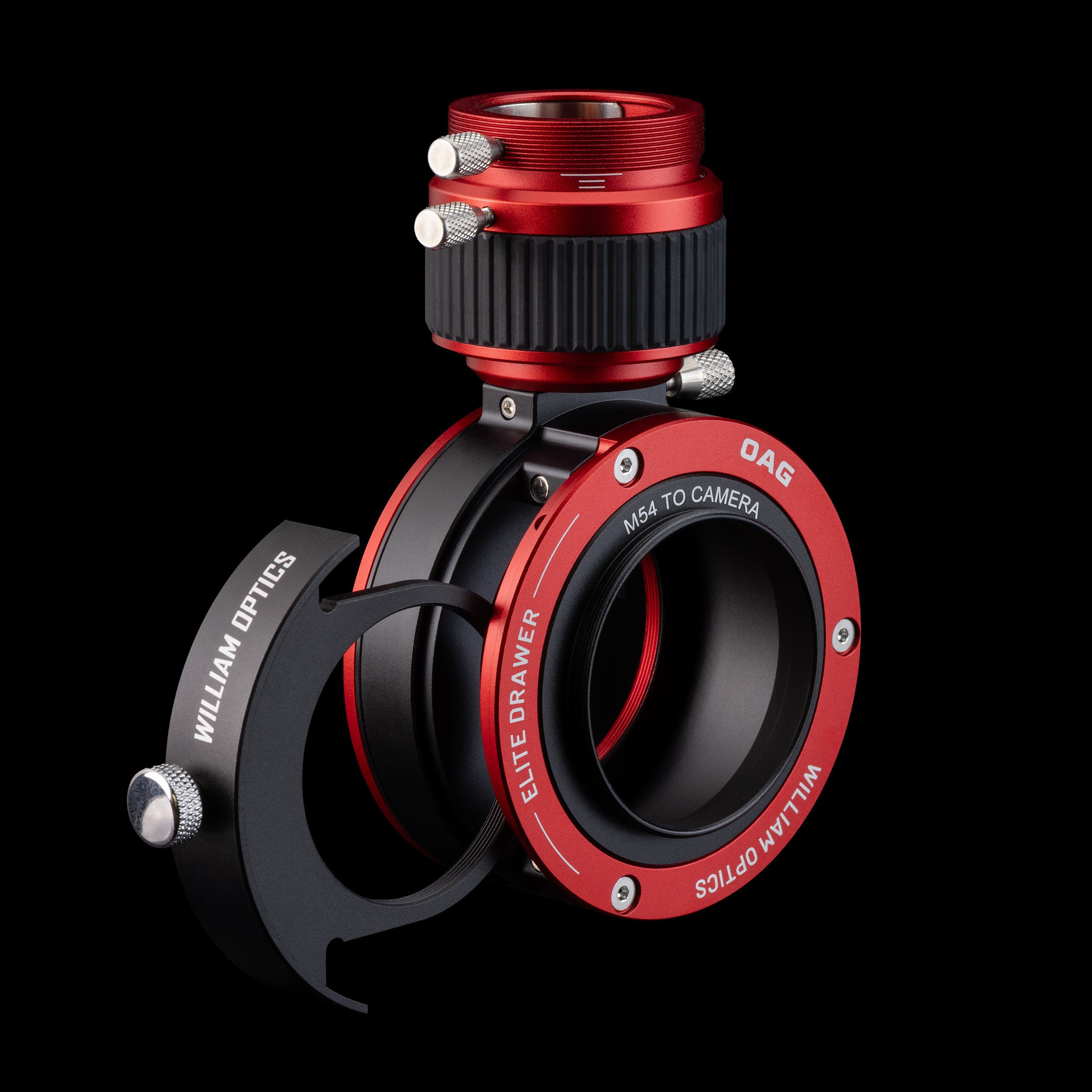

Magnetic M48 Filter Drawer
The magnetic filter drawer holds one M48 filter and provides a smooth, secure, and convenient installation experience. It allows quick filter changes while maintaining a clean and compact mechanical structure.

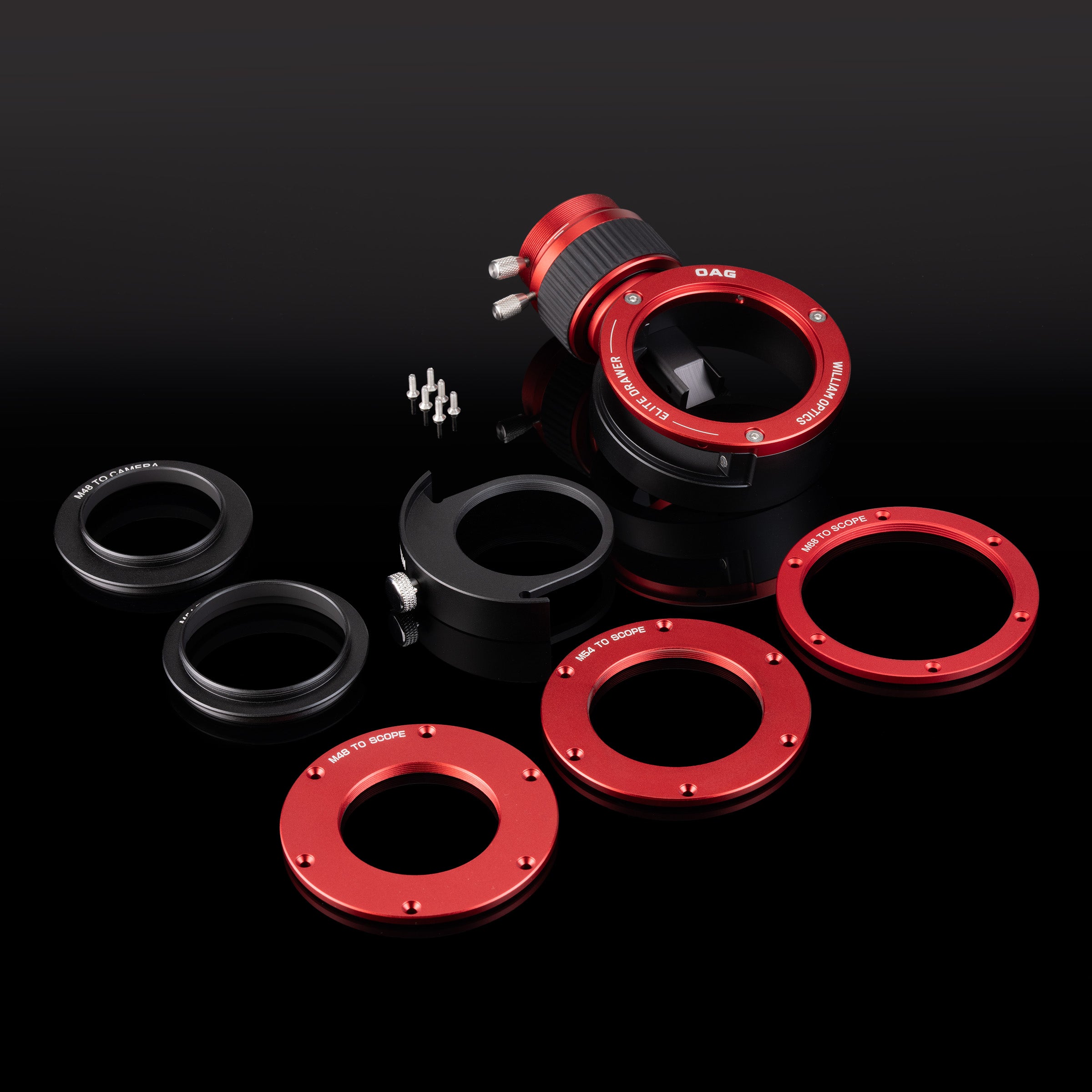

Flexible Interfaces for Multiple Setups
The kit includes M48, M54, and M68 telescope-side interfaces, along with M48 and M54 camera-side interfaces. This broad compatibility makes it easy to adapt the Elite Drawer OAG Kit to many telescope, camera, and imaging train combinations.
- 進光接口
- M54, M48, M68
- 出光接口
- Main: M54, M48 ( M42 optional ) / Guide: M42, 1.25" push-in
- 光學長度
- 37.5 公釐
- 重量
- 336 克 / 11.85 oz
選擇選項
