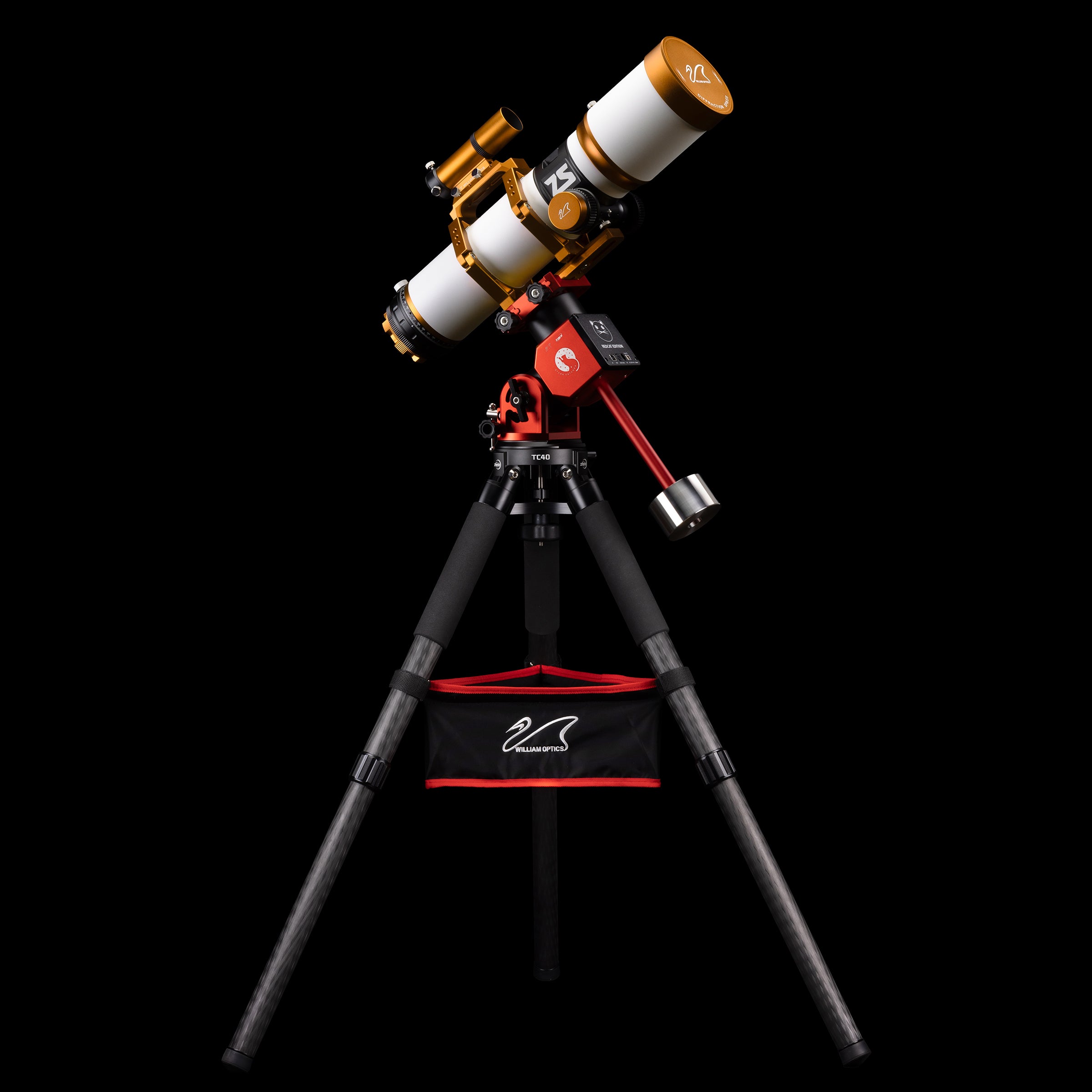

[優惠組合] Zenithstar 81 WIFD ＋ ZWO AM3 全配套組

The ZWO ASI533MC-Pro is a high-performance cooled color astronomy camera ideal for capturing deep-sky objects, as well as high-resolution images of the Moon, Sun, and planets. Its square-format sensor, advanced cooling system, and innovative design make it a versatile tool for astrophotographers of all levels.

Key Features

• Square 1” Sony IMX533 Sensor
  Equipped with a 9-megapixel back-illuminated CMOS sensor with 3008x3008 resolution and 3.76µm pixels, the camera is perfect for framing symmetric celestial objects like star clusters and nebulae.

• Enhanced Image Quality
  The back-illuminated design improves sensitivity and reduces noise, with a high quantum efficiency (QE) of 80% and low read noise of just 1.0e. The sensor’s 50,000e full well capacity ensures bright stars remain sharp without saturation.

• Zero Amp Glow
  Features advanced circuitry to completely eliminate amp glow, even during long exposures at high gain, resulting in cleaner, more accurate images.

• Efficient TEC Cooling and Anti-Dew Heater
  A two-stage TEC cooling system reduces sensor temperature by up to 35°C below ambient, minimizing noise. The heat generated by the cooler also prevents dew formation on the camera window.

• Fast Data Transfer
  Includes a 256MB DDR3 memory buffer for stable data transfer and reduced amp glow. The USB3.0 port supports fast data rates of 20 fps at full resolution.

• Dynamic Range and Low-Noise Performance
  Offers a dynamic range of up to 14 stops, with optimal performance at a gain setting of 100. This makes it well-suited for electronically assisted astronomy (EAA) and traditional astrophotography.

Compact and User-Friendly Design

The ASI533MC-Pro is ideal for both deep-sky imaging and solar-system photography. Its compact size, powerful cooling, and versatile square sensor make it a perfect choice for astrophotographers seeking excellent performance and reliability in a streamlined package.

The ZWO ASI2600MC Duo is a groundbreaking color astrophotography camera designed for stargazing enthusiasts. Combining a high-performance main camera with an integrated guide camera, it simplifies the astrophotography experience without compromising quality.

• Dual Functionality: Imaging and Guiding in One
  Combines imaging and guiding in one device, eliminating the need for a separate guide scope or off-axis guider.

• High-Performance Main Camera
  Features a 26MP Sony IMX571 sensor with 16-bit ADC, 14 stops of dynamic range, 80% quantum efficiency, and cooling down to -35°C below ambient for sharp, noise-free images.

• Advanced Built-In Guide Camera
  Uses the sensitive ASI220MM Mini sensor for precise guiding, even through light-reducing filters like dual narrowband filters.

• Anti-Dew System
  Built-in heater prevents dew formation on the sensor glass, ideal for humid conditions.

• Fast Data Transfer
  USB 3.0 with a 512MB DDR3 buffer ensures quick and stable file transfers.

• Easy Tilt Adjustment
  Rear-facing screws allow quick sensor tilt correction for better image quality.

ZWO’s ASI120MM-Mini monochrome camera is perfect for autoguiding or planetary imaging. The ASI120MM-Mini uses a 1.2-megapixel monochrome sensor with a peak QE of 75% and low read noise to give an excellent level of performance despite its compact size. The camera also includes an AR-coated window to maximize light transmission and protect the CMOS sensor.

The affordable ASI120MM-Mini incorporates a 1/3” sensor (4.8mmx3.6mm) with 1280x960 resolution and small 3.75-micron pixels. The small pixel size results in more precise guiding because the camera can detect smaller deviations in guide star position during an exposure. With a high QE and low read noise, the ASI120MM-Mini can detect plenty of potential guide stars in the field of view of a small guide scope.

The ASI120MM-Mini weighs just 2.1oz and has a diameter of 36mm, so it’s far more compact than the ZWO ASI120MM-S. The main body of the camera slips into a 1.25” focuser and includes a M28.5X0.6 female thread for 1.25" astronomy filters. The camera uses a small Type-C USB2.0 interface, the same type of connector used by many cell phones, and 12-bit ADC for good data resolution. Its ST4 port enables direct connection to the autoguiding port on the telescope mount.

The camera comes with instructions to help you download the required control software and drivers directly from the ZWO website.
